Delivering High-Precision 3D Measurement for Various Application Scenarios

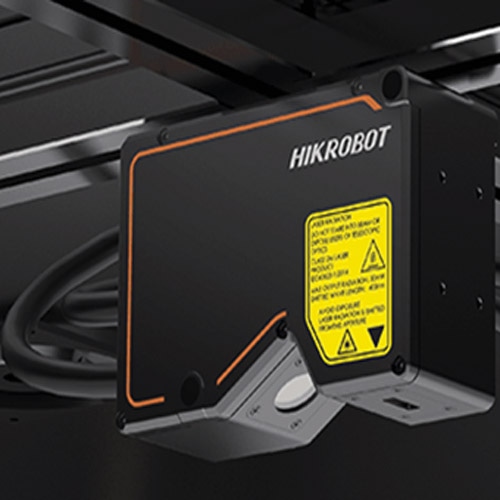

Hikrobot India has introduced its 3D Laser Profile Sensor in India, targeting advanced applications in consumer electronics, lithium battery, and PCB industries. The cutting-edge sensor is designed for high-precision, non-contact measurement, and is expected to significantly boost efficiency and quality in the country’s manufacturing ecosystem.
The 3D Laser Profile Sensor relies on laser triangulation measurement to output high- frame-rate point clouds, depth images, and intensity images at micrometer-level accuracy in real time. It is ideally suited for online 3D measurement in non-contact scenarios, offering precision and speed for complex production environments.
REAL-TIME HIGH-PRECISION MEASUREMENT
The sensor uses a 405 nm ultra-uniform fine blue light to accurately extract the contour lines of measured objects. Its customized large-iris lens ensures extremely high MTF resolution, while the combination of a high dynamic range sensor and Scheimpflug optical design guarantees clear imaging even in complex scenarios.
Equipped with a built-in high-speed processing unit, the camera achieves processing speeds of up to 19 KHz/s, and the high-speed image acquisition chip supports a maximum frame rate of 49 KHz, thanks to SOC chip hardware acceleration. Using triangulation principles, the sensor calculates 3D contour data from the laser line reflected off object surfaces, reconstructing spatial information as the camera or object moves.
The system also incorporates advanced algorithms such as subpixel super-resolution, multi- exposure fusion, single-frame HDR, and halo feature extraction, which collectively enhance accuracy, robustness, and stability. Built-in post-processing options, including spatial and time-domain filtering, allow users to process data efficiently without burdening the host CPU.
KEY FEATURES AND BENEFITS
Hikrobot’s sensor delivers high-frame- rate point clouds, supports multiple exposure and integration modes, and provides stable filtered data. Its submicron-level precision, non-contact measurement, and real-time processing enable faster decision-making and higher reliability in demanding industrial settings.
APPLICATIONS ACROSS INDUSTRIES
• Consumer Electronics: Inspecting
components and finished products.
• Lithium Battery: Measuring battery parts for quality assurance.
• Printed Circuit Boards (PCBs): Accurate inspection and measurement.
With the launch of the 3D Laser Profile Sensor, Hikrobot aims to empower manufacturers with high-precision, efficient, and robust 3D measurement solutions, helping India’s industrial sectors meet growing global standards in quality and production efficiency.
